CAD modeling of a commercial toy "7 in 1 Solar rechargeable SPACE FLEET"

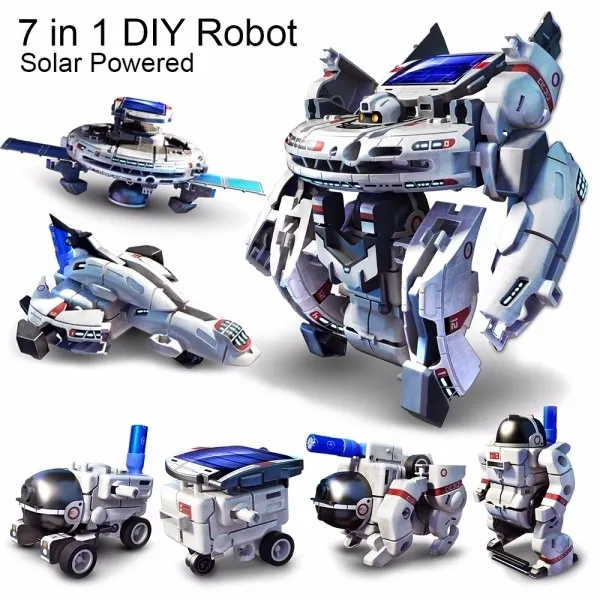

Figures 1 and 2. commercial product
For the modeling of this toy the following steps were followed:
1. Each part of the device is photographed and named
Figure 3. Device parts collage
2. All parts of the project are modeled using Solid Edge

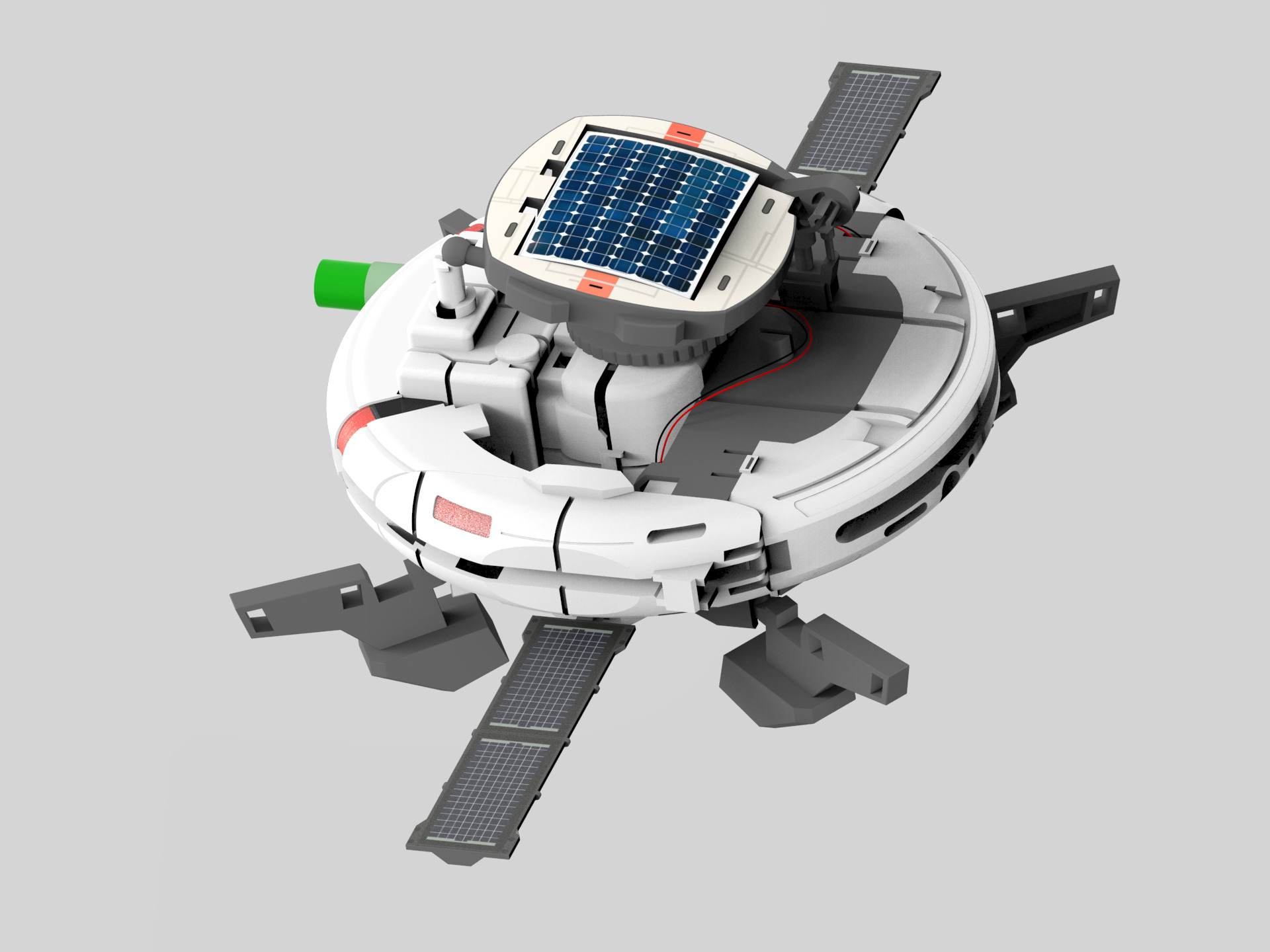

Figure 4. Space Station emsamble render

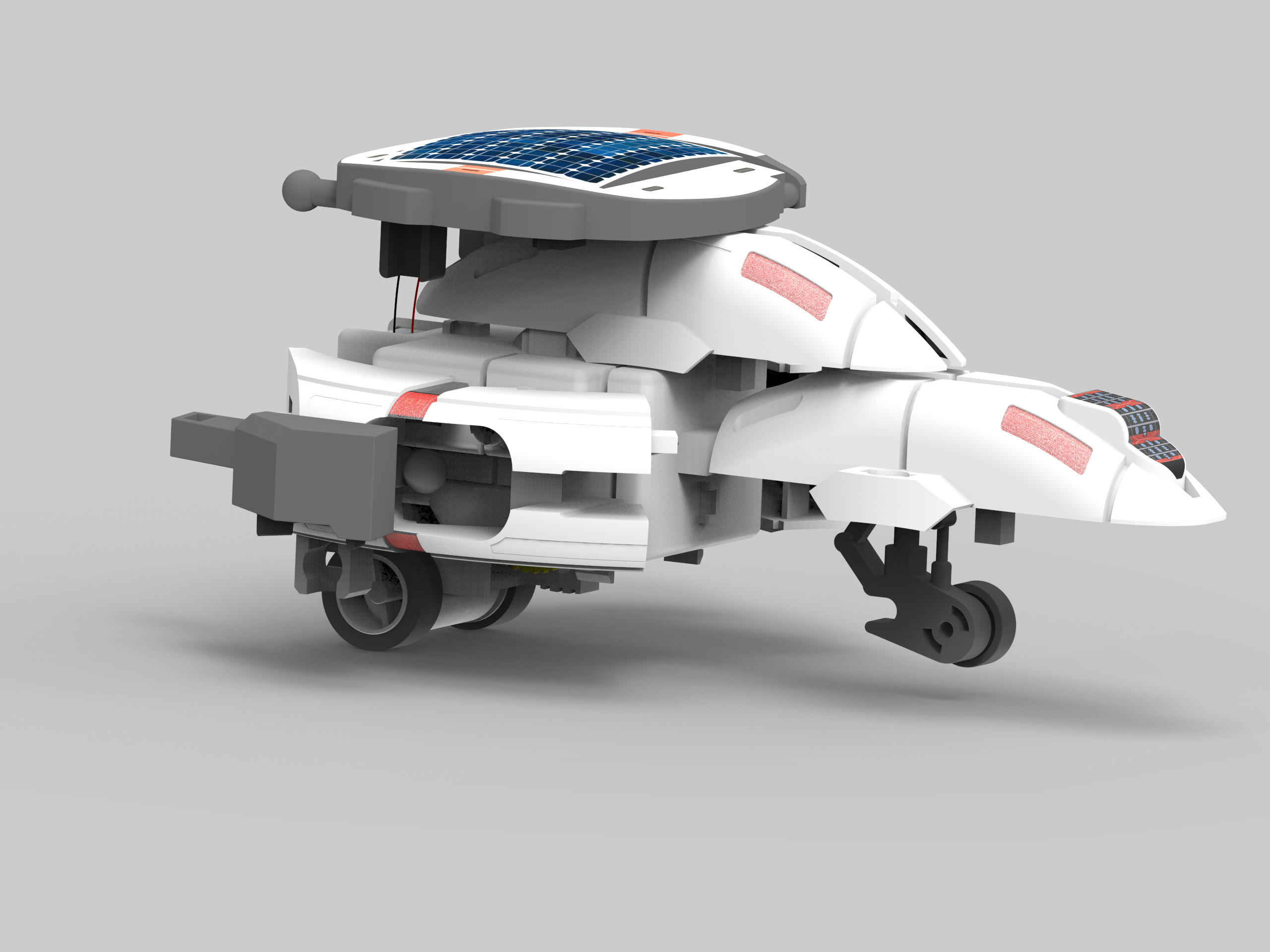

Figure 5. Shuttle emsamble render

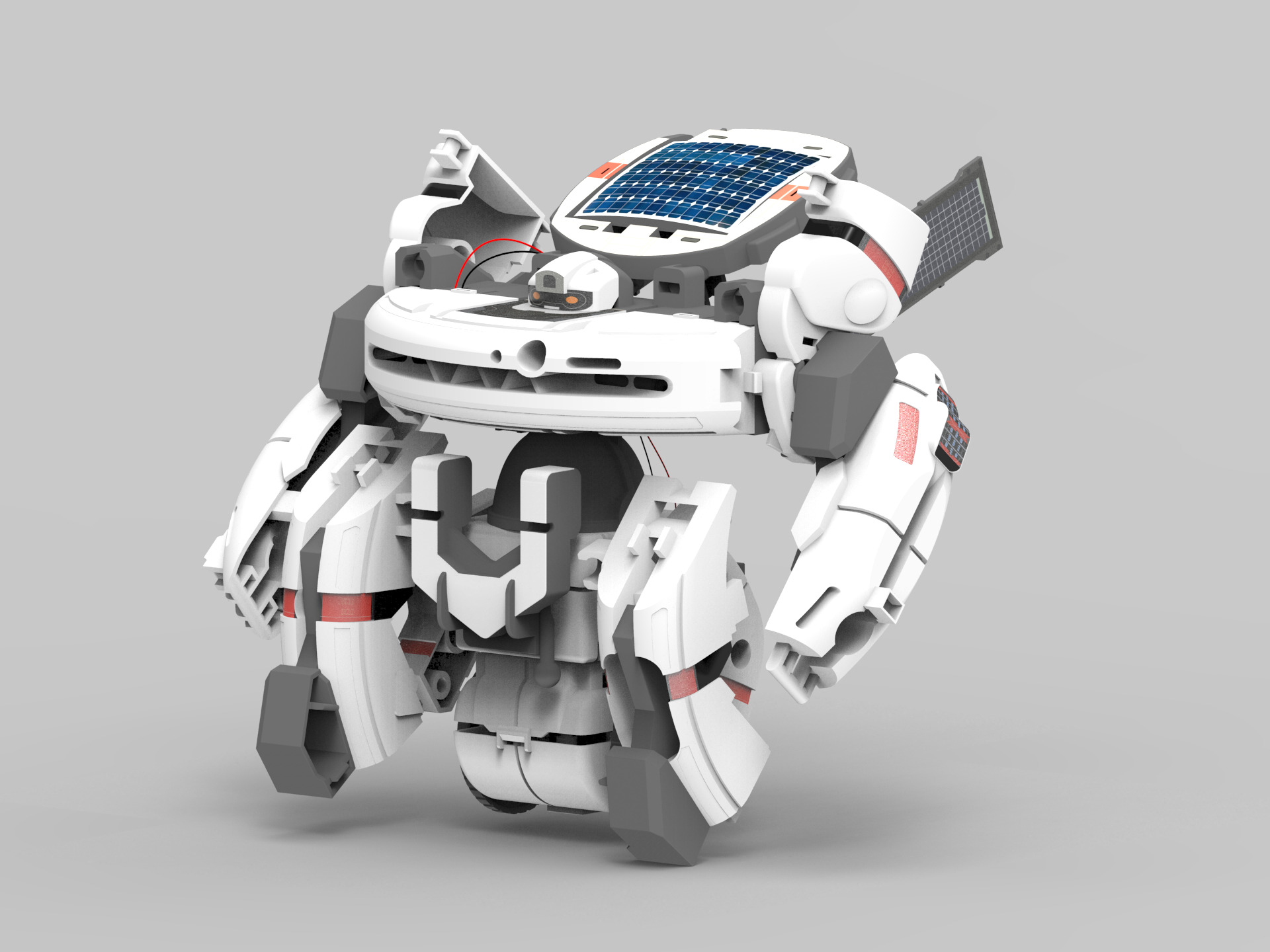

Figure 6. Mech emsamble render
Some videos of the final result
